地图可视化脚本 - 用于显示Waymo场景的地图和轨迹🤓

js
"""
地图可视化脚本 - 用于显示Waymo场景的地图和轨迹
"""
import os
import pickle
import numpy as np
import matplotlib.pyplot as plt
import tensorflow as tf
from waymo_open_dataset.protos import scenario_pb2

# 使用相对导入
import sys
sys.path.append(os.path.dirname(os.path.dirname(os.path.dirname(os.path.abspath(__file__)))))
from src.utils.config import DATA_CONFIG

def visualize_scenario(scenario_id: str, split: str = 'train'):
    """
    可视化单个场景的地图和轨迹

    Args:
        scenario_id: 场景ID
        split: 数据集划分 ('train', 'valid', 'test')
    """
    # 创建图形
    plt.figure(figsize=(30, 30))
    plt.rcParams['axes.facecolor'] = 'grey'

    # 加载场景数据
    processed_file = os.path.join(DATA_CONFIG['waymo_path'], 'processed', split, f'sample_{scenario_id}.pkl')
    if not os.path.exists(processed_file):
        print(f"场景 {scenario_id} 不存在")
        return

    with open(processed_file, 'rb') as f:
        scenario_data = pickle.load(f)

    # 画地图线
    for map_feature in scenario_data['map_features']:
        # 车道线
        if hasattr(map_feature, 'lane') and map_feature.lane:
            line_x = [point.x for point in map_feature.lane.polyline]
            line_y = [point.y for point in map_feature.lane.polyline]
            plt.scatter(line_x, line_y, c='g', s=5)

        # 边界线
        if hasattr(map_feature, 'road_edge') and map_feature.road_edge:
            road_edge_x = [point.x for point in map_feature.road_edge.polyline]
            road_edge_y = [point.y for point in map_feature.road_edge.polyline]

            if map_feature.road_edge.type == 2:  # 道路边界
                plt.scatter(road_edge_x, road_edge_y, c='k')
            elif map_feature.road_edge.type == 3:  # 道路边界（特殊类型）
                plt.scatter(road_edge_x, road_edge_y, c='purple')
            else:
                plt.scatter(road_edge_x, road_edge_y, c='k')

        # 道路标线
        if hasattr(map_feature, 'road_line') and map_feature.road_line:
            road_line_x = [point.x for point in map_feature.road_line.polyline]
            road_line_y = [point.y for point in map_feature.road_line.polyline]

            if map_feature.road_line.type == 7:  # 双实黄线
                plt.plot(road_line_x, road_line_y, c='y')
            elif map_feature.road_line.type == 8:  # 双虚实黄线
                plt.plot(road_line_x, road_line_y, c='y')
            elif map_feature.road_line.type == 6:  # 单实黄线
                plt.plot(road_line_x, road_line_y, c='y')
            elif map_feature.road_line.type == 1:  # 单虚白线
                for i in range(int(len(road_line_x)/7)):
                    plt.plot(road_line_x[i*7:5+i*7], road_line_y[i*7:5+i*7], color='w')
            elif map_feature.road_line.type == 2:  # 单实白线
                plt.plot(road_line_x, road_line_y, c='w')
            else:
                plt.plot(road_line_x, road_line_y, c='w')

    # 画车辆轨迹
    for track in scenario_data['tracks']:
        # 提取轨迹点
        traj_x = [state.center_x for state in track.states if state.valid]
        traj_y = [state.center_y for state in track.states if state.valid]

        if not traj_x or not traj_y:
            continue

        # 如果是自动驾驶车辆
        if track.id == scenario_data['sdc_track_index']:
            plt.scatter(traj_x[0], traj_y[0], s=140, c='r', marker='s')  # 起始点
            plt.scatter(traj_x, traj_y, s=14, c='r')  # 轨迹
        else:
            plt.scatter(traj_x[0], traj_y[0], s=140, c='k', marker='s')  # 起始点
            plt.scatter(traj_x, traj_y, s=14, c='b')  # 轨迹

    # 设置标题和坐标轴
    plt.title(f'Scenario {scenario_id}', fontsize=20)
    plt.xlabel('X (meters)', fontsize=16)
    plt.ylabel('Y (meters)', fontsize=16)

    # 保存图像
    output_dir = os.path.join(DATA_CONFIG['waymo_path'], 'visualizations', split)
    os.makedirs(output_dir, exist_ok=True)
    plt.savefig(os.path.join(output_dir, f'scenario_{scenario_id}.png'))
    plt.close()

def visualize_random_scenarios(split: str = 'train', num_scenarios: int = 5):
    """
    随机可视化多个场景

    Args:
        split: 数据集划分 ('train', 'valid', 'test')
        num_scenarios: 要可视化的场景数量
    """
    processed_dir = os.path.join(DATA_CONFIG['waymo_path'], 'processed', split)
    scenario_files = [f for f in os.listdir(processed_dir) if f.startswith('sample_')]

    # 随机选择场景
    selected_scenarios = np.random.choice(scenario_files, min(num_scenarios, len(scenario_files)), replace=False)

    for scenario_file in selected_scenarios:
        scenario_id = scenario_file.replace('sample_', '').replace('.pkl', '')
        print(f"正在可视化场景: {scenario_id}")
        visualize_scenario(scenario_id, split)

if __name__ == "__main__":
    # 可视化训练集中的指定个随机场景
    visualize_random_scenarios('train', 20)

其中DATA_CONFIG配置为地址即可，参考如下：

# 数据集配置
DATA_CONFIG = {
    'waymo_path': '/mnt/f/waymoMotion/motionData/waymo_data',  # Waymo数据集根目录
    'train_path': '/mnt/f/waymoMotion/motionData/waymo_data/train',  # 训练集路径
    'valid_path': '/mnt/f/waymoMotion/motionData/waymo_data/valid',  # 验证集路径
    'test_path': '/mnt/f/waymoMotion/motionData/waymo_data/test',  # 测试集路径
}

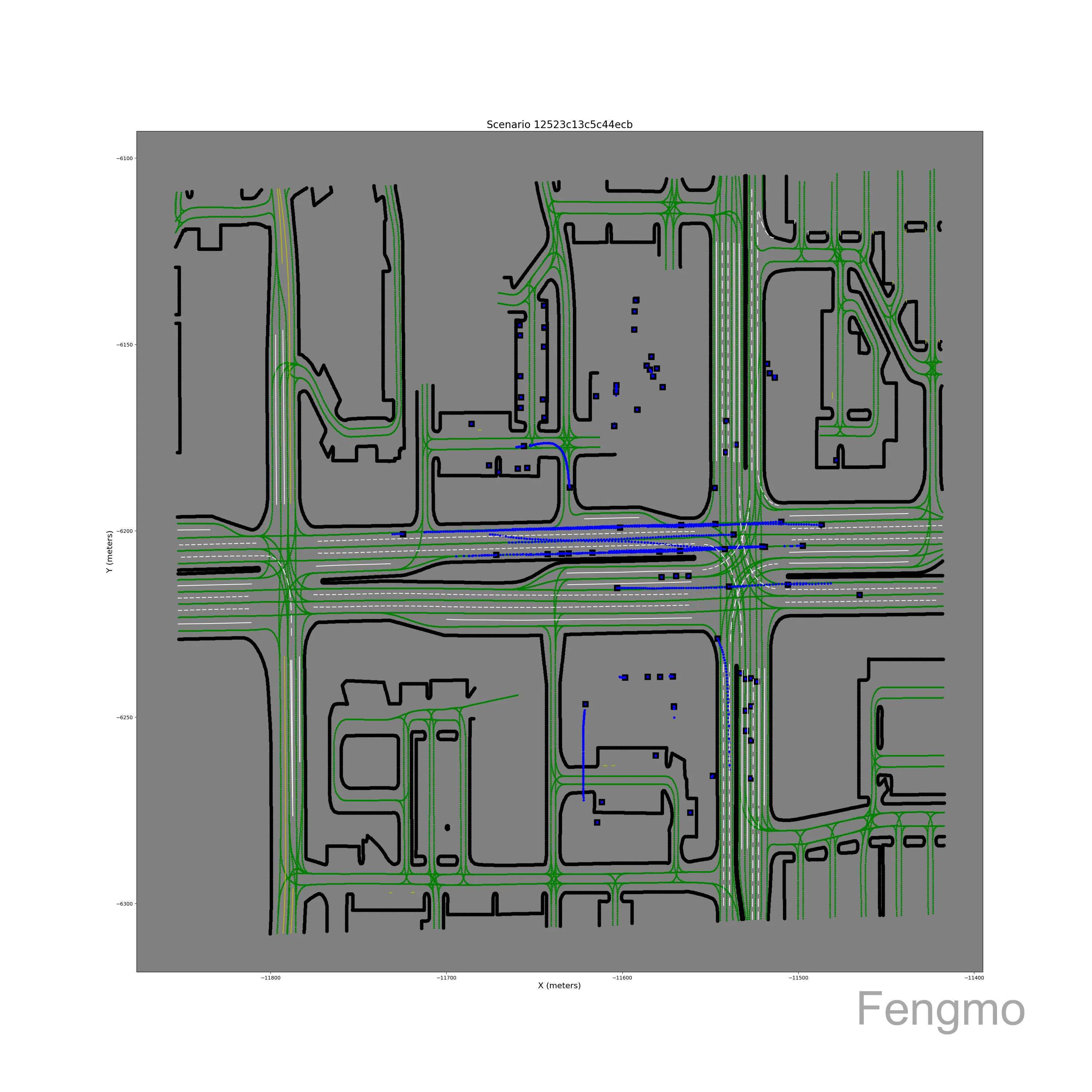

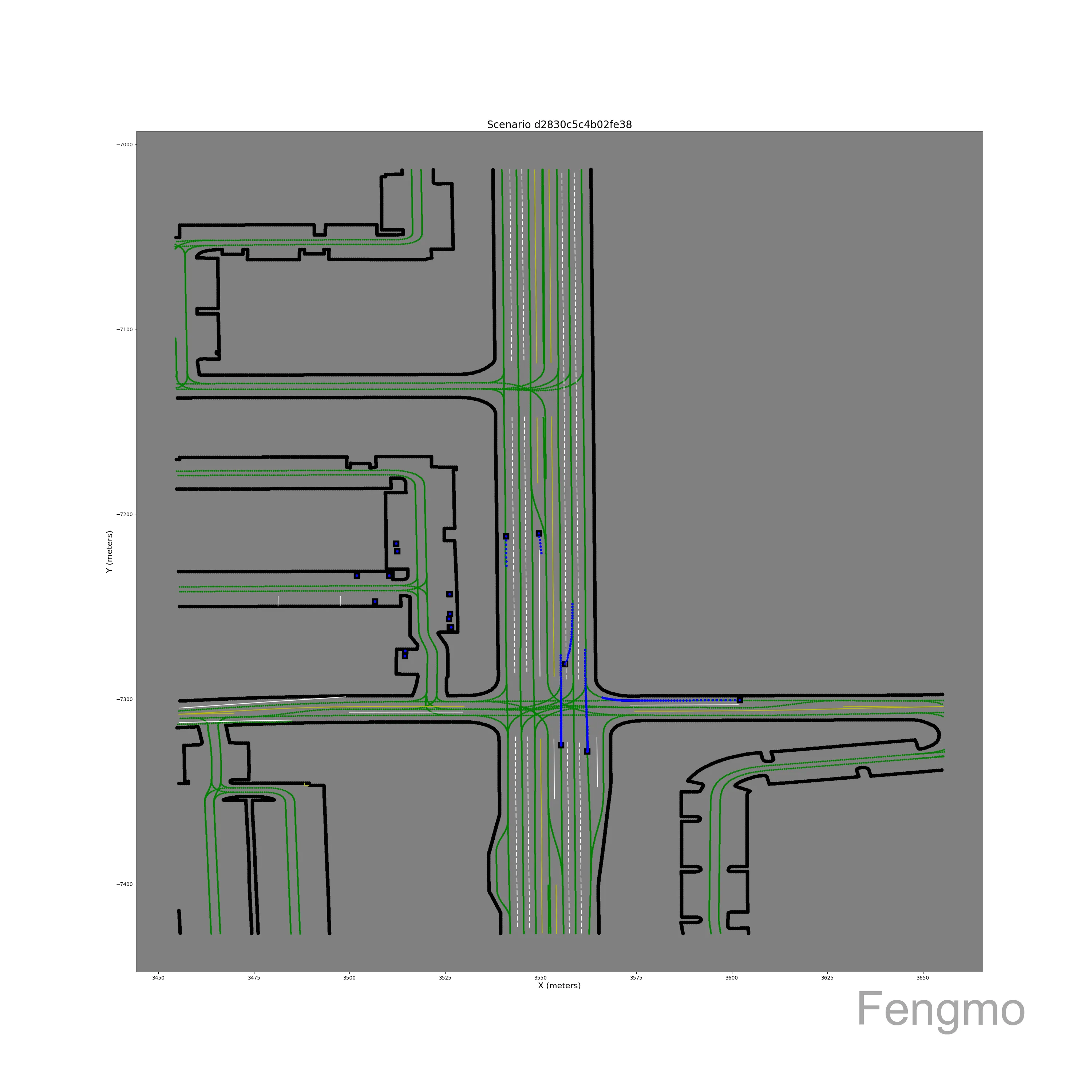

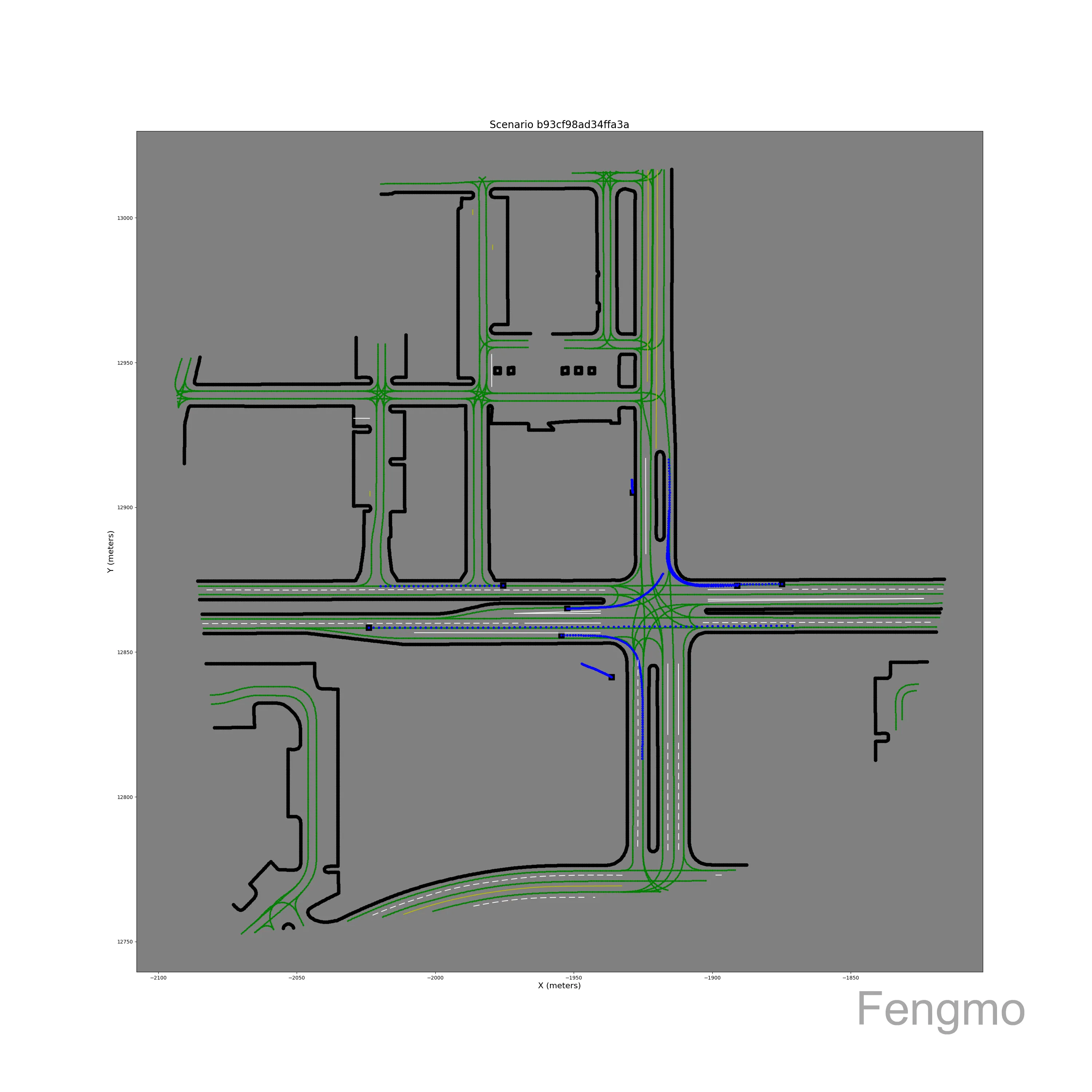

最后展示效果随机选择展示如下：
